{% connectorDetailsHeader
name="Atlas"
stage="PROD"
platform="OpenMetadata"
availableFeatures=["Metadata"]
unavailableFeatures=[]
/ %}

{% partial file="/v1.9/connectors/ingestion-modes-tiles.md" variables={yamlPath: "/connectors/metadata/atlas/yaml"} /%}

## Requirements

{% note %}
Every table ingested will have a tag name `AtlasMetadata.atlas_table`. You can find all tags under
Governance > Classification.
{% /note %}

## 1. Create Database & Messaging Services

You need to create at least a Database Service before ingesting the metadata from Atlas. Make sure to note down the name, since
we will use it to create Atlas Service.

For example, to create a Hive Service you can follow these steps:

{% partial
  file="/v1.9/connectors/metadata-ingestion-ui.md"
  variables={
    connector: "Hive",
    selectServicePath: "/images/v1.9/connectors/hive/select-service.png",
    addNewServicePath: "/images/v1.9/connectors/hive/add-new-service.png",
    serviceConnectionPath: "/images/v1.9/connectors/hive/service-connection.png",
}
/%}

## 2. Atlas Metadata Ingestion

Then, prepare the Atlas Service and configure the Ingestion:

{% partial
  file="/v1.9/connectors/metadata-ingestion-ui.md"
  variables={
    connector: "Atlas",

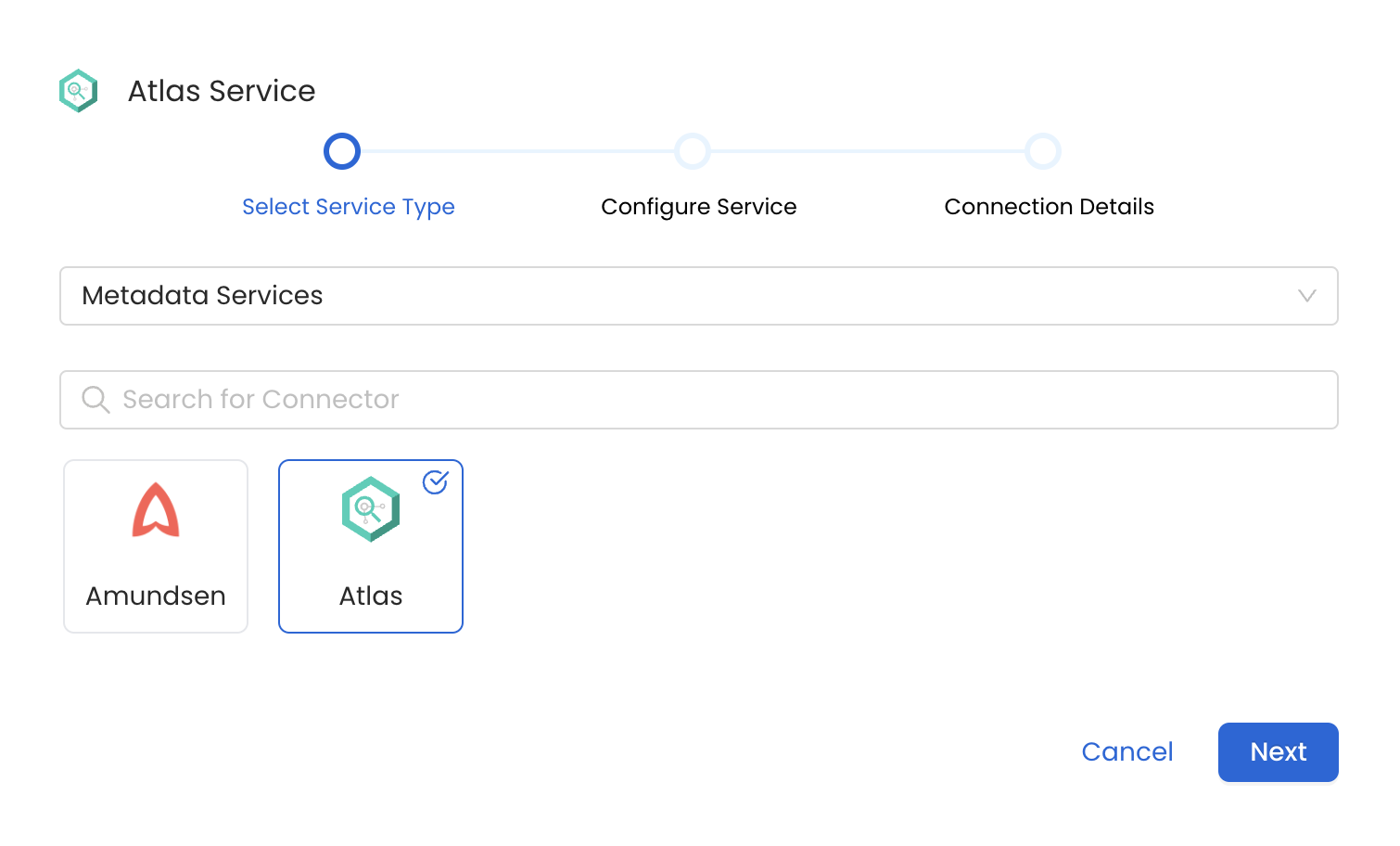

    selectServicePath: "/images/v1.9/connectors/atlas/select-service.png",

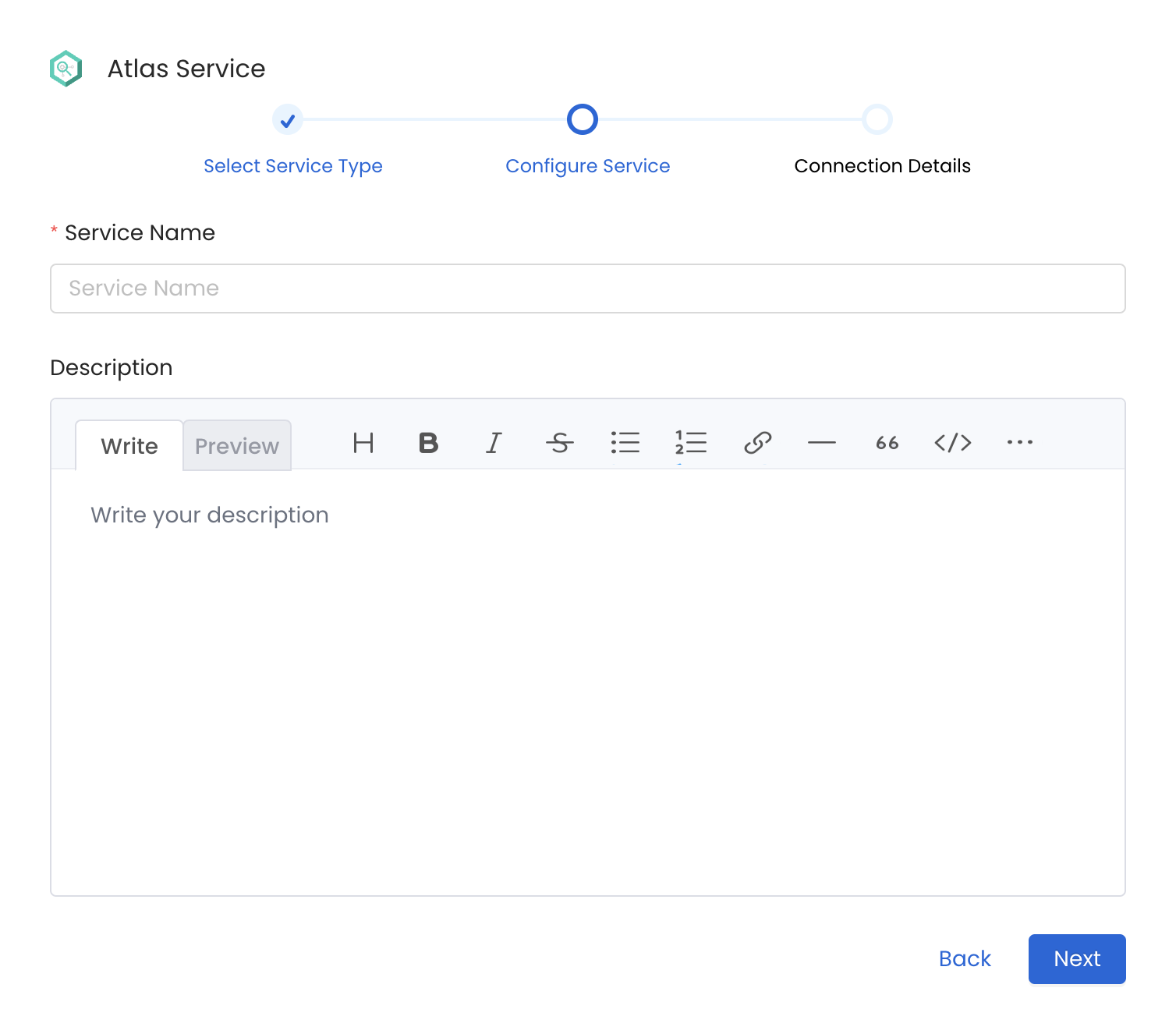

    addNewServicePath: "/images/v1.9/connectors/atlas/add-new-service.png",
    serviceConnectionPath: "/images/v1.9/connectors/atlas/service-connection.png",
}
/%}

{% stepsContainer %}
{% extraContent parentTagName="stepsContainer" %}

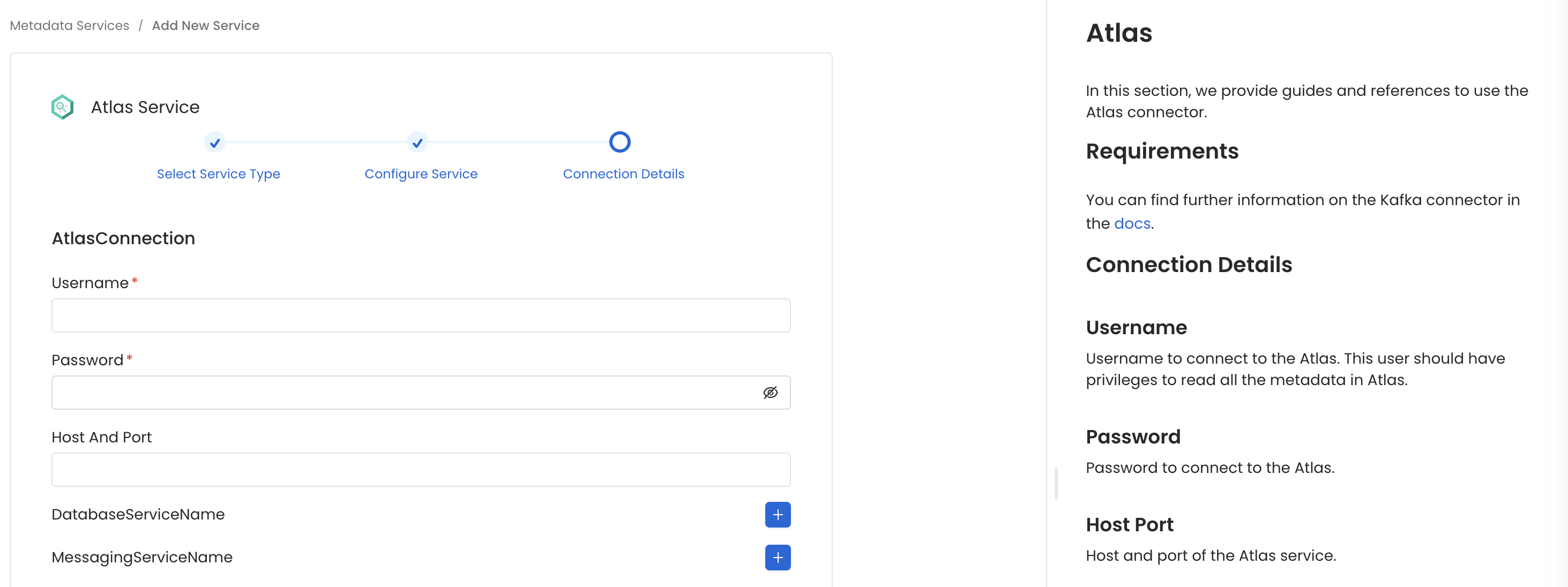

#### Connection Details

{% collateContent %}

{% note %}

When using a **Hybrid Ingestion Runner**, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format: 

```
password: secret:/my/database/password
``` 

This applies **only to fields marked as secrets** in the connection form (these typically mask input and show a visibility toggle icon). 

For a complete guide on managing secrets in hybrid setups, see the [Hybrid Ingestion Runner Secret Management Guide](https://docs.getcollate.io/getting-started/day-1/hybrid-saas/hybrid-ingestion-runner#3.-manage-secrets-securely).

{% /note %}

{% /collateContent %}

- **Host and Port**: Host and port of the Atlas service.
- **Username**: username to connect  to the Atlas. This user should have privileges to read all the metadata in Atlas.
- **Password**: password to connect  to the Atlas.
- **databaseServiceName**: source database of the data source. This is the service we created before: e.g., `local_hive`)
- **messagingServiceName**: messaging service source of the data source.
- **Entity Type**: Name of the entity type in Atlas.

{% /extraContent %}

{% partial file="/v1.9/connectors/test-connection.md" /%}

{% partial file="/v1.9/connectors/metadata/configure-ingestion.md" /%}

{% partial file="/v1.9/connectors/ingestion-schedule-and-deploy.md" /%}

{% /stepsContainer %}
