{% connectorDetailsHeader
name="Stitch"
stage="PROD"
platform="Collate"
availableFeatures=["Pipelines", "Lineage"]
unavailableFeatures=["Owners", "Tags", "Pipeline Status"]
/ %}


In this section, we provide guides and references to use the Stitch connector.

Configure and schedule Stitch metadata and profiler workflows from the OpenMetadata UI:

- [Requirements](#requirements)
- [Metadata Ingestion](#metadata-ingestion)
- [Troubleshooting](/connectors/pipeline/stitch/troubleshooting)

{% partial file="/v1.9/connectors/ingestion-modes-tiles.md" variables={yamlPath: "/connectors/pipeline/stitch/yaml"} /%}

## Requirements

To extract metadata from Stitch, User first need to crate API crednetials:
- `Token`: Token to access Stitch metadata.


## Metadata Ingestion

{% partial
    file="/v1.9/connectors/metadata-ingestion-ui.md"
    variables={
        connector: "Stitch",
        selectServicePath: "/images/v1.9/connectors/stitch/select-service.png",
        addNewServicePath: "/images/v1.9/connectors/stitch/add-new-service.png",
        serviceConnectionPath: "/images/v1.9/connectors/stitch/service-connection.png",
    }
/%}

{% stepsContainer %}
{% extraContent parentTagName="stepsContainer" %}

#### Connection Details

{% collateContent %}

{% note %}

When using a **Hybrid Ingestion Runner**, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format: 

```
password: secret:/my/database/password
``` 

This applies **only to fields marked as secrets** in the connection form (these typically mask input and show a visibility toggle icon). 

For a complete guide on managing secrets in hybrid setups, see the [Hybrid Ingestion Runner Secret Management Guide](https://docs.getcollate.io/getting-started/day-1/hybrid-saas/hybrid-ingestion-runner#3.-manage-secrets-securely).

{% /note %}

{% /collateContent %}

- **hostPort**: This parameter specifies the network location where your Stitch instance is accessible, combining both the hostname. It is based on the account and region where user has hosted his/her data pipelines. More about this you can check [here](https://www.stitchdata.com/docs/developers/import-api/api#base-urls)

- **token**: Token to get access to Stitch metadata. This token is created by user after logging into stitch console. More about this, please check [here](https://www.stitchdata.com/docs/developers/import-api/guides/quick-start#obtain-api-credentials)


{% /extraContent %}

{% partial file="/v1.9/connectors/test-connection.md" /%}

{% partial file="/v1.9/connectors/pipeline/configure-ingestion.md" /%}

{% partial file="/v1.9/connectors/ingestion-schedule-and-deploy.md" /%}

{% /stepsContainer %}

By successfully completing these steps, the lineage information for the service will be displayed.


Ingest Stitch pipeline metadata to track transformation flow and manage operational lineage.

Stitch

Requirements

Metadata Ingestion

1. Visit the Services Page

2. Create a New Service

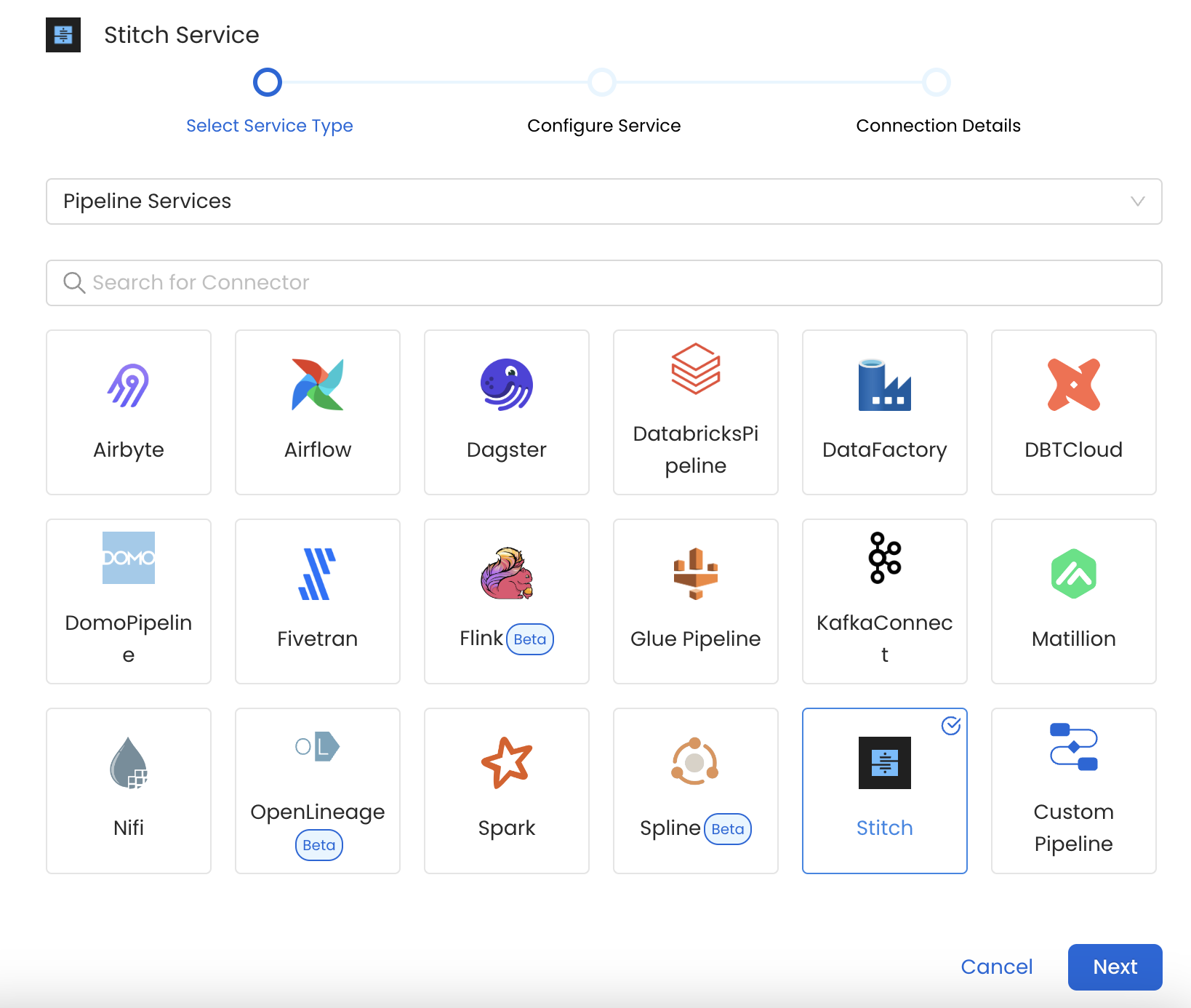

3. Select the Service Type

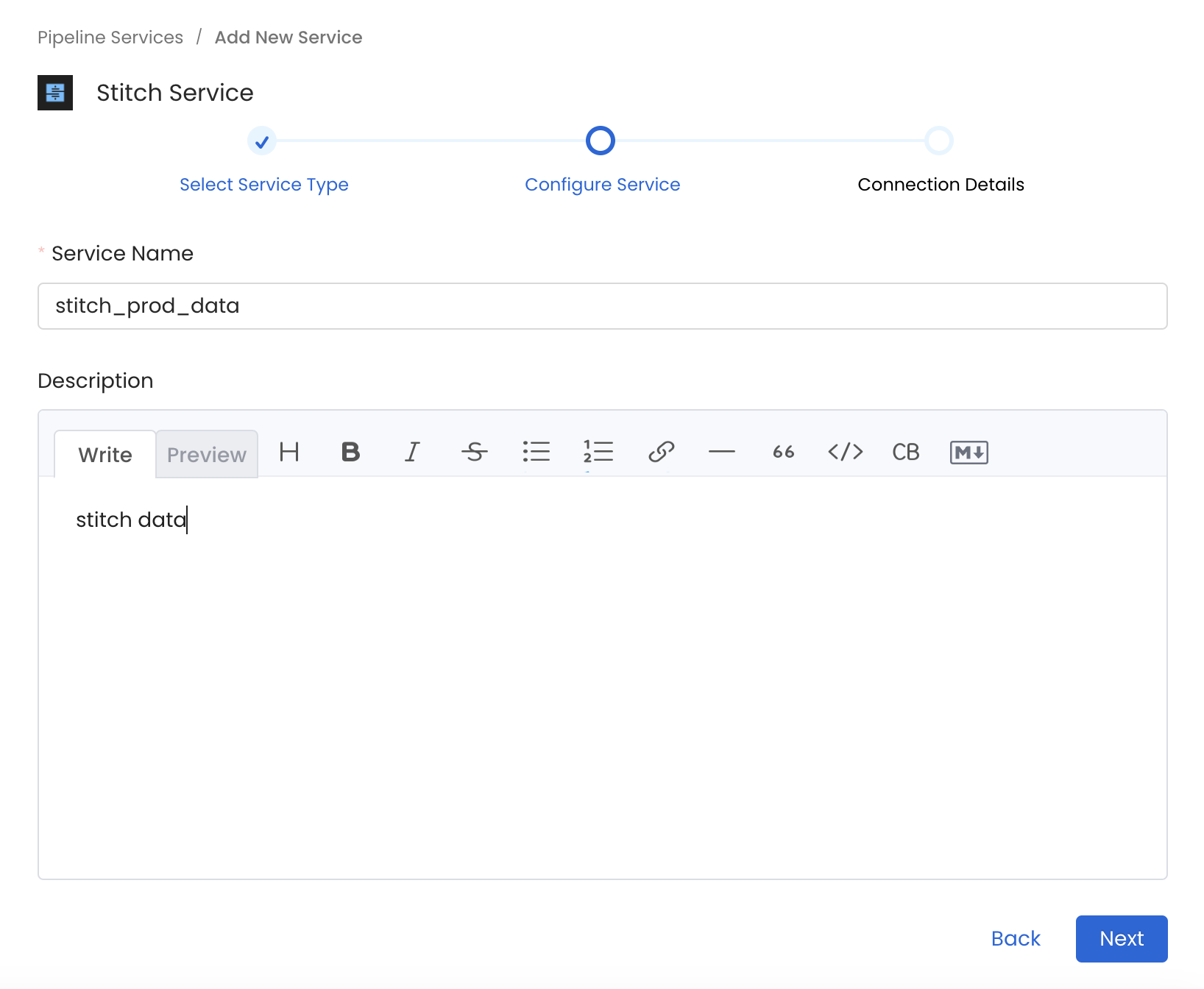

4. Name and Describe your Service

Service Name

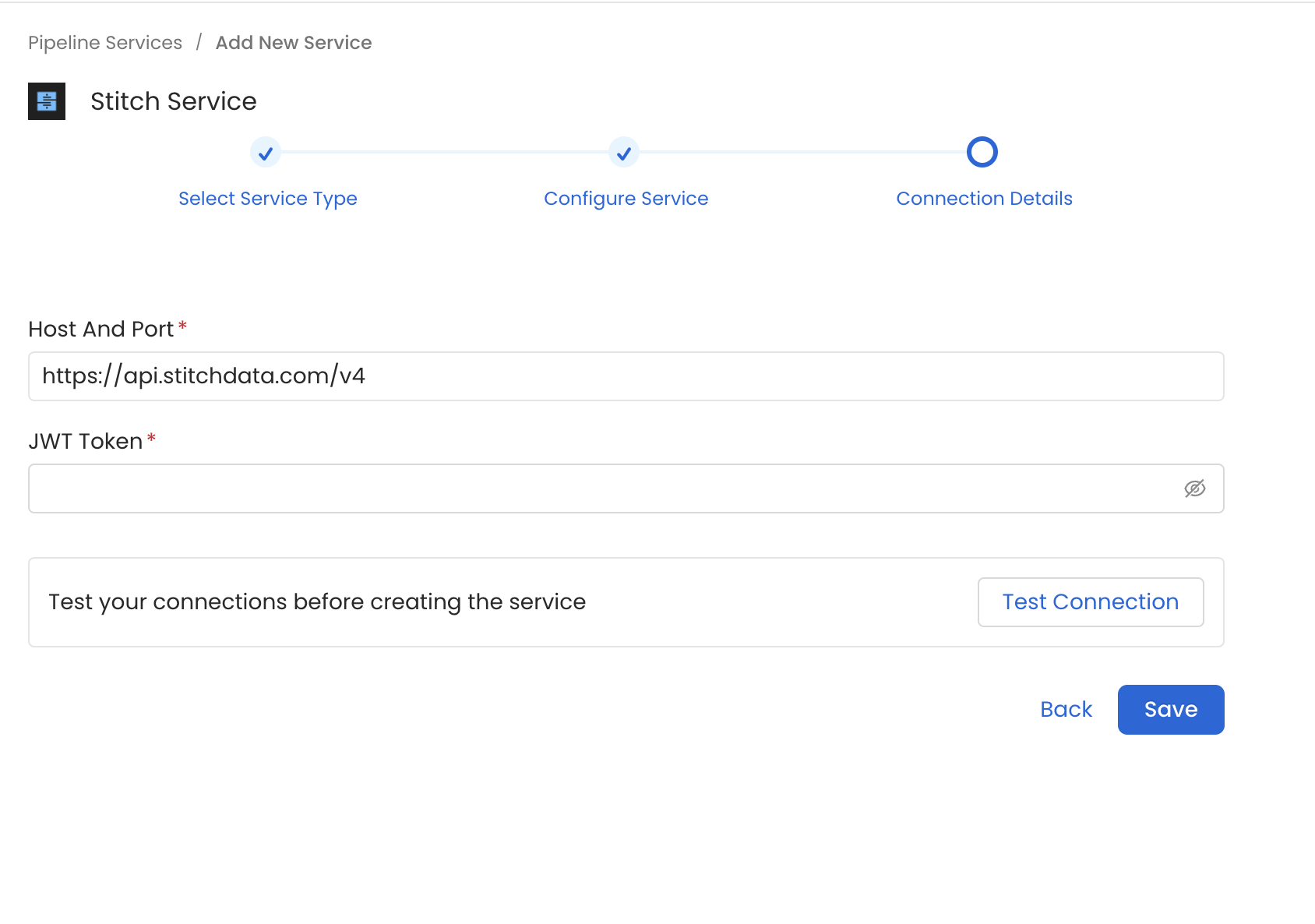

5. Configure the Service Connection

Connection Details
