Docker Deployment

This guide will help you set up the OpenMetadata Application using Docker Deployment. Before starting with the deployment make sure you follow all the below Prerequisites.

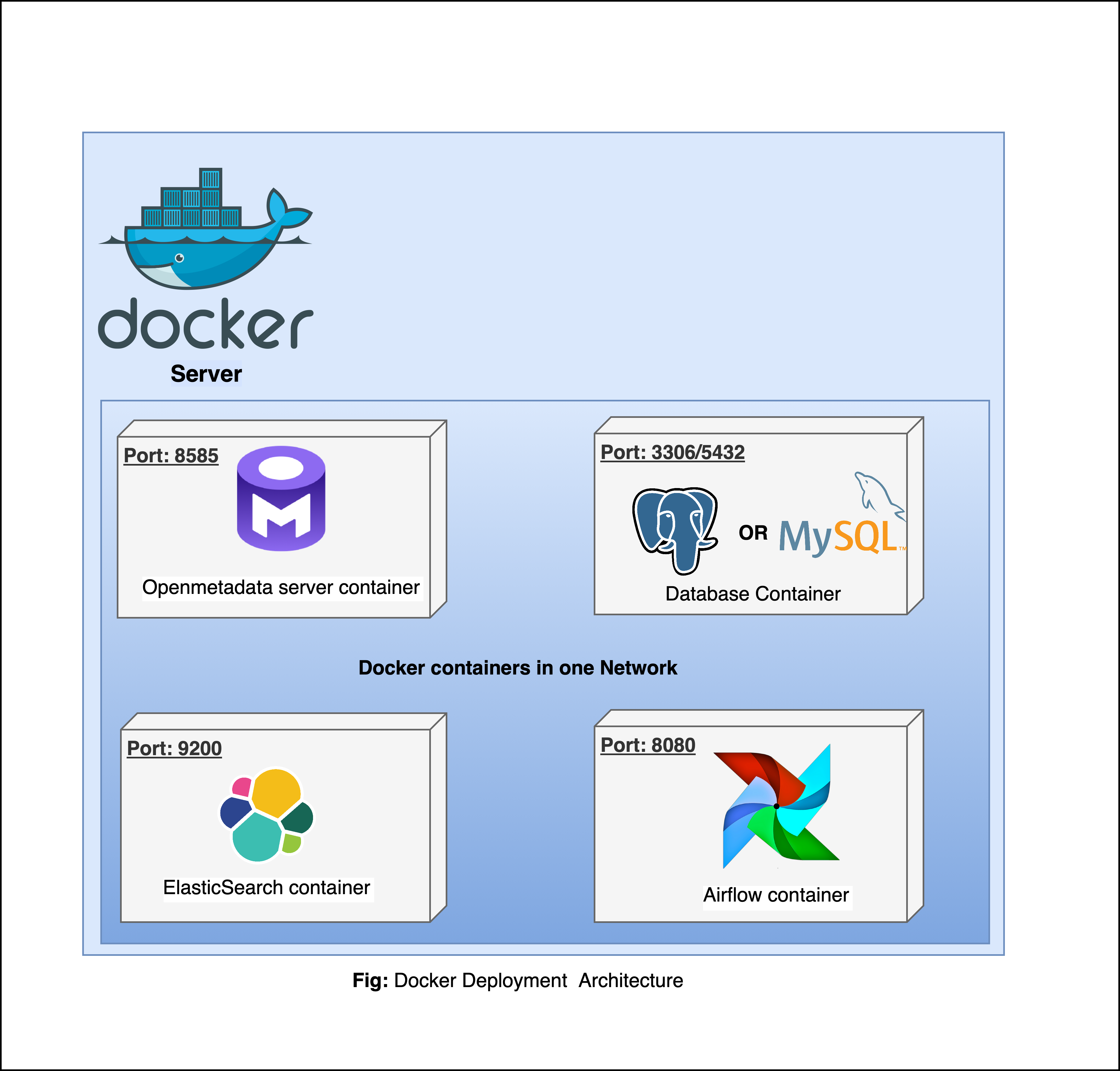

Docker Deployment Architecture

Prerequisites

Configure OpenMetadata to use External Database and Search Engine

For Production Deployment using Docker, we recommend bringing your own Databases and ElasticSearch Engine and not rely on quickstart packages.

Configure External Orchestrator Service (Ingestion Service)

OpenMetadata requires connectors to be scheduled to periodically fetch the metadata, or you can use the OpenMetadata APIs to push the metadata as well

1. OpenMetadata Ingestion Framework is flexible to run on any orchestrator. However, we built an ability to deploy and manage connectors as pipelines from the UI. This requires the Airflow container we ship.
2. If your team prefers to run on any other orchestrator such as prefect, dagster or even GitHub workflows. Please refer to our recent webinar on How Ingestion Framework works

Docker (version 20.10.0 or higher)

Docker is an open-source platform for developing, shipping, and running applications. It enables you to separate your applications from your infrastructure, so you can deliver software quickly using OS-level virtualization. It helps deliver software in packages called Containers.

To check what version of Docker you have, please use the following command.

If you need to install Docker, please visit Get Docker.

Docker Compose (version v2.2.3 or greater)

The Docker compose package enables you to define and run multi-container Docker applications. The compose command integrates compose functions into the Docker platform, making them available from the Docker command-line interface ( CLI). The Python packages you will install in the procedure below use compose to deploy OpenMetadata.

• MacOS X: Docker on MacOS X ships with compose already available in the Docker CLI.
• Linux: To install compose on Linux systems, please visit the Docker CLI command documentation and follow the instructions.

To verify that the docker compose command is installed and accessible on your system, run the following command.

Upon running this command you should see output similar to the following.

Install Docker Compose Version 2 on Linux

Follow the instructions here to install docker compose version 2

1. Run the following command to download the current stable release of Docker Compose

   This command installs Compose V2 for the active user under $HOME directory. To install Docker Compose for all users on your system, replace ~/.docker/cli-plugins with /usr/local/lib/docker/cli-plugins.

2. Apply executable permissions to the binary

3. Test your installation

Minimum Sizing Requirements

We recommend you to allocate openmetadata-server with minimum of 2vCPUs and 6 GiB Memory.

For External Services that openmetadata depends on -

• For the database, minimum 2 vCPUs and 2 GiB RAM (per instance) with 30 GiB of Storage Volume Attached (dynamic expansion up to 100 GiB)
• For Elasticsearch, minimum 2 vCPUs and 2 GiB RAM (per instance) with 30 GiB of Storage volume attached

These settings apply as well when using managed instances, such as AWS RDS or GCP CloudSQL or AWS OpenSearch.

Steps for Deploying OpenMetadata using Docker

1. Create a directory for OpenMetadata

Create a new directory for OpenMetadata and navigate into that directory.

2. Download Docker Compose Files from GitHub Releases

Download the Docker Compose files from the Latest GitHub Releases.

The Docker compose file name will be docker-compose-openmetadata.yml.

This docker compose file contains only the docker compose services for OpenMetadata Server. Bring up the dependencies as mentioned in the prerequisites section.

You can also run the below command to fetch the docker compose file directly from the terminal -

3. Update Environment Variables required for OpenMetadata Dependencies

In the previous step, we download the docker-compose file.

Identify and update the environment variables in the file to prepare openmetadata configurations.

For MySQL Configurations, update the below environment variables -

For ElasticSearch Configurations, update the below environment variables -

For OpenSearch Configurations, update the below environment variables -

For Ingestion Configurations, update the below environment variables -

4. Start the Docker Compose Services

Run the below command to deploy the OpenMetadata -

You can validate that all containers are up by running with command docker ps.

In a few seconds, you should be able to access the OpenMetadata UI at http://localhost:8585

Port Mapping / Port Forwarding

We are shipping the OpenMetadata server and UI at container port and host port 8585. You can change the host port number according to your requirement. As an example, You could update the ports to serve OpenMetadata Server and UI at port 80

To achieve this -

• You just have to update the ports mapping of the openmetadata-server in the docker-compose.yml file under openmetadata-server docker service section.

• Once the port is updated if there are any containers running remove them first using docker compose down command and then recreate the containers once again by below command

Run OpenMetadata with a load balancer

You may put one or more OpenMetadata instances behind a load balancer for reverse proxying. To do this you will need to add one or more entries to the configuration file for your reverse proxy.

Nginx

To use OpenMetadata behind Nginx reverse proxy, add an entry resembling the following the http context of your Nginx configuration file for each OpenMetadata instance.

Run OpenMetadata with AWS Services

If you are running OpenMetadata in AWS, it is recommended to use Amazon RDS and Amazon OpenSearch Service.

We support

• Amazon RDS (MySQL) engine version 8 or higher
• Amazon OpenSearch (ElasticSearch) engine version up to 8.11.4 or Amazon OpenSearch engine version up to 2.7
• Amazon RDS (PostgreSQL) engine version 12 or higher

Note:- When using AWS Services the SearchType Configuration for elastic search should be opensearch, for both cases ElasticSearch and OpenSearch, as you can see in the ElasticSearch configuration example.

For Production Systems, we recommend Amazon RDS to be in Multiple Availability Zones. For Amazon OpenSearch (or ElasticSearch) Service, we recommend Multiple Availability Zones with minimum 3 Master Nodes.

Once you have the RDS and OpenSearch Services Setup, you can update the environment variables below for OpenMetadata Docker Compose backed systems to connect with Database and ElasticSearch.

Replace the environment variables values with the RDS and OpenSearch Service ones and then provide this environment variable file as part of docker compose command.

Advanced

Add Docker Volumes for OpenMetadata Server Compose Service

There are many scenarios where you would want to provide additional files to the OpenMetadata Server and serve while running the application. In such scenarios, it is recommended to provision docker volumes for OpenMetadata Application.

For example, we would like to provide custom JWT Configuration Keys to be served to OpenMetadata Application. This requires the OpenMetadata Containers to have docker volumes sharing the private and public keys. Let's assume you have the keys available in jwtkeys directory in the same directory where your docker-compose file is available in the host machine.

In scenarios where you need to provide a custom openmetadata.yaml configuration file to the OpenMetadata application, you can do so by mounting the file as a volume in the Docker container. This is especially useful for configurations that cannot be controlled through environment variables.

We add the volumes section to mount the keys or openmetadata.yaml onto the docker containers create with docker compose as follows -

The above example uses bind mounts to share files and directories between host machine and openmetadata container.

Next, in your environment file, update the jwt configurations to use the right path from inside the container.

Ensure that the default environment variables are set appropriately to complement the settings in your openmetadata.yaml.

Once the changes are updated, if there are any containers running remove them first using docker compose down command and then recreate the containers once again by below command

Troubleshooting

Java Memory Heap Issue

If your openmetadata Docker Compose logs speaks about the below issue -

This is due to the default JVM Heap Space configuration (1 GiB) being not enough for your workloads. In order to resolve this issue, head over to your custom openmetadata environment variable file and append the below environment variable

The flag Xmx specifies the maximum memory allocation pool for a Java virtual machine (JVM), while Xms specifies the initial memory allocation pool.

Restart the OpenMetadata Docker Compose Application using docker compose --env-file <my-env-file> -f docker-compose.yml up --detach which will recreate the containers with new environment variable values you have provided.

PostgreSQL Issue permission denied to create extension "pgcrypto"

If you are facing the below issue with PostgreSQL as Database Backend for OpenMetadata Application,

It seems the Database User does not have sufficient privileges. In order to resolve the above issue, grant usage permissions to the PSQL User.

Security

Please follow our Enable Security Guide to configure security for your OpenMetadata installation.

Next Steps

1. Refer the How-to Guides for an overview of all the features in OpenMetadata.
2. Visit the Connectors documentation to see what services you can integrate with OpenMetadata.
3. Visit the API documentation and explore the rich set of OpenMetadata APIs.
